AC DYNAMOMETERS

The Froude AC dynamometer has been specifically designed for the testing of gasoline and diesel engines in R & D and Quality Audit applications.
Low inertia AC motor with standard speed ranges from 3,500 rpm to 10,000 rpm
Standard torque hub measurement accuracy is +/-0.2% of the full rated torque of the dynamometer
Speed is measured to an accuracy of +/- 1 rpm

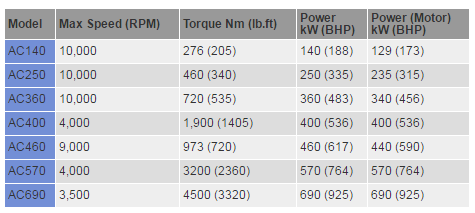

     SPESIFIKASI


     Description

The AC dynamometer is constructed using a low inertia AC motor especially designed for engine test applications mounted on a substantial fabricated baseframe. On foot mounted versions torque is measured using an in-line torque hub. For trunnion mounted machines a precision strain gauge load cell is used. As an option both versions can include an integrated jackshaft that provides additional overhung load capacity for the engine drive shaft.
               Froude AC

     Dynamometer


Heat generated within the dynamometer is dissipated using the integral cooling fan. The AC dynamometer is supplied with a 4-quadrant flux vector AC inverter. This state-of-the-art technology incorporates high speed IGBT (Insulated Gate Bipolar Transistor) and sophisticated control algorithms to provide excellent transient response and steady state control. The drive incorporates a special input stage which operates at near unity power factor, minimises supply current harmonics and in re-generation mode frequency matches to the mains supply. The AC dynamometer and inverter drive unit are designed for use with Froude's range of Texcel control and data acquisition systems.


     Applications

The Froude AC dynamometer is designed to meet the requirements of high performance motoring, absorbing engine development, and Quality Assurance testing.
Available in trunnion and foot mounted configurations and with a range of additional options including jackshafts and hi-dynamic performance, these machines have been specifically designed to provide the performance and durability required for today's testing environment.

Komentar

Posting Komentar

Postingan populer dari blog ini

FROUDE INVENTED THE WATER BRAKE DYNAMOMETERS

Gambar
testingindonesia.com The Froude F Range Hydraulic dynamometers (also referred to as water brakes) have been designed to be compact, robust and to allow easy maintenance. Some of these models are available with a streamlined, fabricated base. This base is not only ultra durable due to the powder coating process, but also offers flexibility with water inlet/outlet placement and lifting eye locations. These engine dynos are fitted with two half couplings which, with the rotor, are oil injected onto the shaft. The standard machines run in grease lubricated rolling element bearings. The hydraulic dynamometer working compartment consists of special semi-circular shaped vanes cast into stainless steel rotor and stators. Water flowing in a toroidal vortex pattern around these vanes creates a torque reaction through the dynamometer casing which is resisted and measured by a precision load cell. The dynamometer load is controlled by a 'butterfly' water outlet valve, oper
Baca selengkapnya

EDDY CURRENT ENGINE DYNAMOMETERS

Gambar
Overview testingindonesia.com SuperFlow offers a broad selection of technologically advanced eddy current absorbers which are ideal for precise engine testing. Low minimum load capabilities allow testing of very small engines, or larger engines running at very light loads and high speeds. Heat is dissipated by cooling water flowing through the stationary portion of the absorber. Rotating water seals have been eliminated. Bearings are pre-lubricated and rated for 5,000 hours of operation between servicing. Standard commercial load cells measure reaction torque for either direction of rotation. The double-ended main shaft may be fitted with a starter motor or used for dual engine connection. Speed is measured by a 60-tooth gear and hall effect sensor. All SuperFlow dry gap eddy current absorbers can be interfaced with SuperFlow data acquisition and control systems for complete engine, dynamometer and throttle control. These systems integrate with personal computers running Supe
Baca selengkapnya
